16mm Alfie

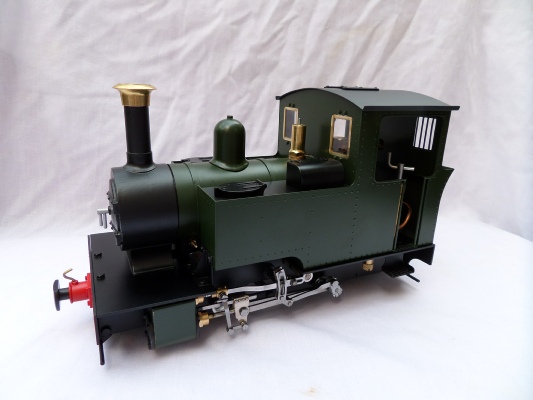

We are proud to introduce our new 16mm locomotive ‘ALFIE’ live steam locomotive.

Chassis

• Outside framed 0-4-0 chassis
• Dual gauge (32mm & 45mm Gauge)
• Features Roundhouse slide valve cylinders
• Roundhouse combination and drop link detail.
• Simplified Walschaerts valve gear
• Manual control via regulator & Fwd/Rev lever

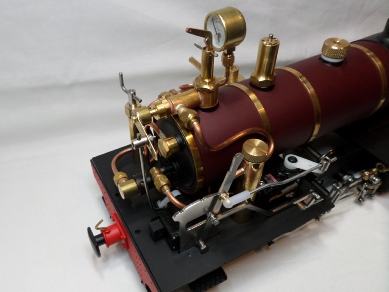

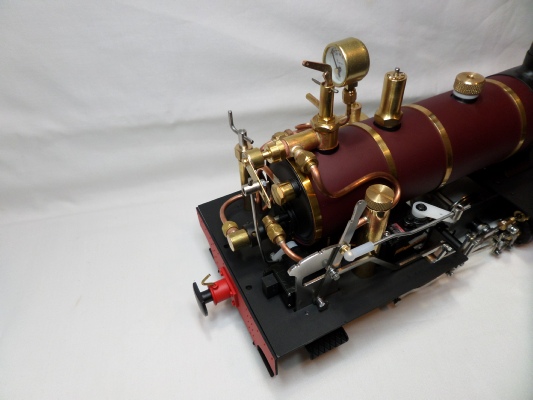

Boiler

• Gas fired (internal flue type boiler)
• Boiler top up valve fitted as standard
• 40psi Working boiler pressure
• Displacement lubricator with drain valve
• 3/4” Dia pressure gauge fitted as standard

Body

• Cab features pressed rivet detail
• Front spectacle plate with revolving windows
• Rear cab sheet slides out for ease of access to controls
• Etched brass body

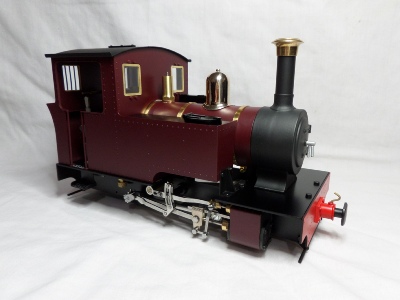

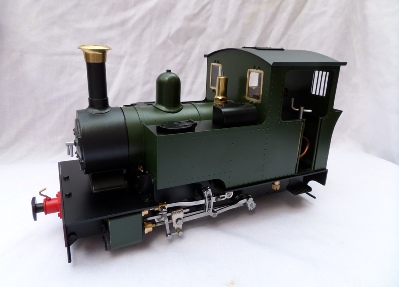

• Available colours BR Loco Green & Maroon Red

Dimensions (approx)

• Length 250mm (over buffer beams)
• Width 115mm
• Height 155mm (from rail to of cab)

Loco Options

• Boiler Bands - Brass / loco colour
• Dome          - Brass / loco colour

Options at additional cost to loco price

• Optional Summerlands Chuffer
• Change pressure gauge from 3/4” dia to 1/2” dia
• Fit DJB Whistle
• Fit Radio Control to loco (2 Channel)

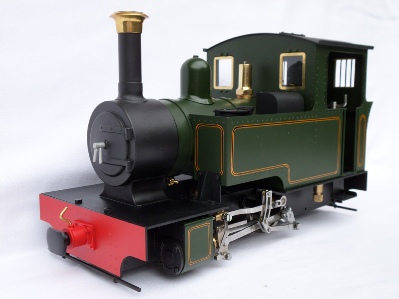

Lining by Matt Towell at Barley Pit Works
